Home /Products/Fiber Marking Machine/Fiber Laser Marking Machine MOPA JPT Laser Source 20W 30W 60W

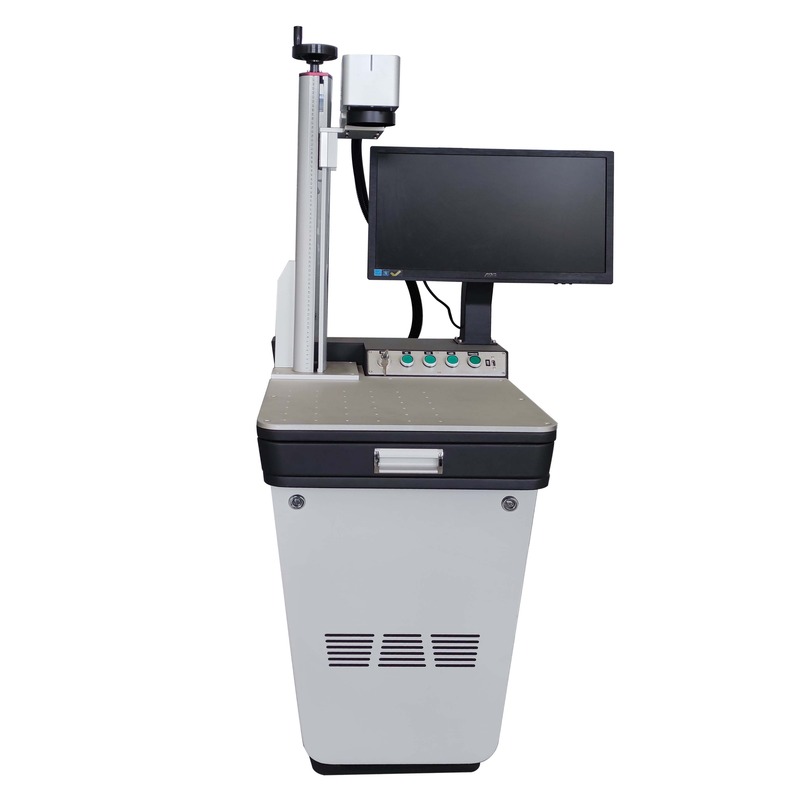

Fiber Laser Marking Machine MOPA JPT Laser Source 20W 30W 60W

1 Set
MOQ
$1,600.00(1 - 4 Sets) $1,500.00(>=5 Sets)
Price
Fiber Laser Marking Machine MOPA JPT Laser Source 20W 30W 60W
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking
Working Accuracy: 0.001mm
Graphic Format Supported: AI, PLT, DXF, BMP, DXP
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Laser Source Brand: RAYCUS
Control System Brand: Beijing JCZ
Marking Head Brand: Sino Brand Galvo Head
Weight (KG): 96 KG
Key Selling Points: High-accuracy
Warranty: 3 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops
Marking Area: 300mm*300mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing, Gearbox, Engine, PLC
Mode Of Operation: Software
Configuration: Stand-alone
Feature: Laser Color
Laser Source: JPT Laser Source
Laser Power: 20W /30w/ 50w(Optional)
Laser Head: SINGO Head
Marking Depth: 0.01-0.5mm
Power Supply: 110V/220V
Showroom Location: Egypt
Basic Infomation
Payment & Shipping Terms
Packaging Details: woodencase
Supply Ability: 100 Set/Sets per Month
Product Description
Product Overview



Jinan Pioneers Color Laser Marking Machine
MOPA Fiber Laser Marking and Deep Engraving Machine is a kind of laser machine which adopts JPT laser source for color printing on stainless steel.
FEATURES AT A GLANCE
1.Easy and quick installation, USB connected with computer easily
2. Low Cost: high turnover ratio between electricity and laser, the whole machine power
consumption is less than 500W, which is 1/10 of light pumping source laser
3.Free-Maintenance Operation: There is no need of any maintenance for laser, or cleaning the lens.
Mini type
Desktop type
Big seal

PRODUCT SPECIFICATIONS
Wave length of laser


1064nm










Laser repetition frequency


20KHz~80KHz










Laser power


20W

30W
60W







Making scope


50*50/70*70/100*100/200*200/300*300mm










Laser source


Fiber laser JPT










Laser head


High speed scanning head










The minimum focus facula diameter


20μm










Minimal character


0.01mm










Marking speed


≤7000mm/s










Repeated accuracy


0.0025mm










Cooling ways


Air Cooling










Power supply


220V/50Hz-60Hz










Process material


All kinds of metal and part of Non-metal material










Support format


PLT,BMP DXF, JPG, TIF, AL etc.










PRODUCTS CONFIGURATION
Field lens
110*110mm(optional)
JCZ original version of EZCADsoftware: latest version 14.10.Can update at any time and support windows 7/8/10

Computer English Version,win10
Sino brand galvo head, Beijing, 2206 series
Raycus brand,China. Best China fiber brand
Protective glasses,pedals,tools
SAMPLES






SALES AND SERVICE NETWORK


PACKAGING & SHIPPING:

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool 2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
3.Wooden box at the bottom of a solid iron socket for easy handling.
Strict Packaging Process



Company Information



About Jinan Pioneers Technology Co.,Ltd
Jinan Pioneers Technology Co., Ltd. established in July 2011 integrated R&D, design, production, sales, service and total solutions for Fiber laser cutting & woodworking machinery.Our products are sold more than 50 countries, such as European&USA, Southeast Asia, Middle-east markets,receive the user’s consistent high praise &certification.
Our Factory




Our team

Certificate

FAQ
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q: How is your after sales service?
A: Oursales are online for 24-hours. We can also supply overseas install service. If you machine is broken ,We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
