Laser marking laser welder Raycus source1500w laser welding machine price handheld laser welding machine for sale

1 Set
MOQ
Laser marking laser welder Raycus source1500w laser welding machine price handheld laser welding machine for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking, Laser Welding Machine
Working Accuracy: Laser Welding Machine
Graphic Format Supported: AI
Laser Type: Fiber Laser
Condition: New
Cooling Mode: Wind Cooling
Laser Source Brand: Raycus
Control System Brand: Cypcut
Weight (KG): 220 KG
Key Selling Points: High Efficiency
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marking Area: OTHER
Machinery Test Report: Test Report
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 1 Year
Core Components: Motor
Product Name: Laser Welder
Function: Welding Metal Materials
Wavelength: 1070NM
Single Pulse Energy: 20J
Dimensions: 965mmL*565mmW*930mmH
Machine Type: Welding Machine
Cooling System: Water Chiller
Focal Spot Diameter: Mm/0.0.5mm
Pulse Width: 0.1-50ms
Certification: Ce
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Showroom Location: None
Marketing Type: Ordinary Product
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: Every laser welding machine set in a box.
Product Description
Laser welder Raycus source1500w laser welding machine handheld price laser welding machine for sale
Products Description
PROJECT
PARAMETER
PROJECT
PARAMETER
Device name
Handheld fiber laser welding machine
Laser power
500w, 800w, 1000w, 1500w, 2000w
Laser system
Fiber optic laser
Laser wavelength
1070nm
Operation mode
Continous
Fiber length
Standard 10M (15M the longest support)
Welding gun load
≤2000w
Way of working
Continuous/modulation
Power
500w-2000w
Welder speed range
0~120mm/s
Core
25um-100um
Cooling water machine
Industraial themostatic water tank
Welding penetration
0.39mm-4.57mm
Working environment temperature range
15~35℃
Welding speed
≤20m/min
Working environment humidity range
＜70% No condensation
Targeting
Built-in red light
Welding thickness recomendation
0.5-3mm
Welding material
Carbon steel, stainless steel, galvanized sheet, Aluminum, copper, etc
Welding gap requirements
≤0.5mm
Cooling method
Water cooling
Equipment size
965mmL*565mmW*930mmH
Significant advantages
Different welding of non-standard metal parts, manual welding is more flexible.
Perfect welding quality, small deformation, high penetration depth, no weld penetration.
A variety of welding processes, spot welding, seam welding, welding, etc.
High welding efficiency, replacing traditional TIG welding equipment.
The largest welding benefit cost, no consumables, energy saving and environmental protection.

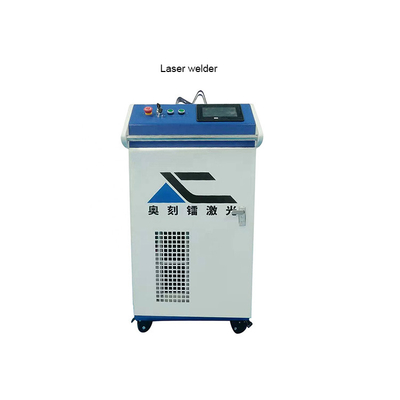

Introduction of laser welding machine
Accurate Laser welding head is designed by the body engineering design method, fully considering the comfort of the customer for
long-term use, and has the protective measures of the butt welding material to emit light, with multiple safety alarms, after
removing, the workpiece lock light automatic, high security. Accurate laser welding head can be equipped with nozzles of different
angles to meet the requirement of customers welding different products.
Portable handheld welding head
Portable handheld welding head is the biggest character of the machine. Instead of the fixed welding head, it offers so much
welding convenience for welding big ,or heavy ,or complex structure articles.
Welding software
Welding software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple
touch screen .It has editable and memory functions.


Water chiller of laser welding machine
One of the biggest convenience of the machine is the inside water chiller .It saves a lot of the machine’s dimension. It is
constant temperature industrial type.
Application of Laser Welder
Related Products
Company Profie
Exhibition & Visiting
Packing & Shiping
After-sales Service
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to serve machinery overseas. Only $200.00 service fee is charged per day.
* 24 hours hotline .Online installation and operation instruction.
* Life long machines Consultant
*More than 10 people of R&D team from optical,mechanical,electrical and software are in charged of designing, installation,
production, test and after-sale service.
FAQ
Q: How to Install the machine?
A: After receive our machine, customers do not need to install it and can use it directly.

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It’s very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser marking machine before can still operate it very well. According to customers’ requests, we can send our technician to customer’ plant for machine training or customers can come to our plant for machine training if needed.

Q: In case machine exists problem, how to do after sales service?
A: We provide two years machine warranty. During the 1 year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.

Q: What’s delivery time?
A: Generally speaking, lead time is 5-7 working days after receive the payment.

Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
