Home /Products/Fiber Laser Welding Machine/Garment Shops 2000W Metal Handheld Manual Fiber Laser Welding Machine Continuous Metal Laser Welder

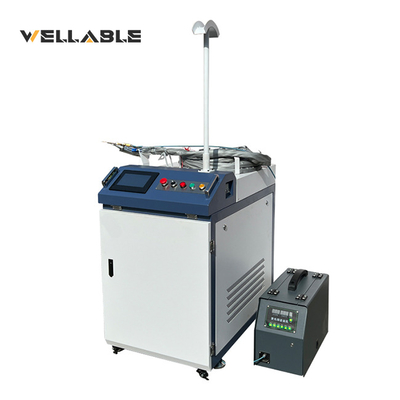

Garment Shops 2000W Metal Handheld Manual Fiber Laser Welding Machine Continuous Metal Laser Welder

1 Piece
MOQ
$9,100.00(1 - 4 Pieces) $8,850.00(5 - 9 Pieces) $8,550.00(>=10 Pieces)
Price
Garment Shops 2000W Metal Handheld Manual Fiber Laser Welding Machine Continuous Metal Laser Welder
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Max. Output Power: 5000W
Usage: Metal Welding
Single Pulse Energy: 300J
Pulse Width: 0.5~10ms
Wavelength: 1080nm
Focal Spot Diameter: 0.2-2.0mm, 0.2 ~ 2.0 Mm
Dimensions: 950x970x1520MM, 1200mm*680mm*1000mm
Warranty: 1 Year
Laser Source Brand: RAYCUS
Weight (KG): 200 KG
Key Selling Points: High Productivity
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Machinery Test Report: Provided
Video Outgoing-inspection: Not Available
Marketing Type: High Efficiency
Warranty Of Core Components: 1 Year
Core Components: Motor, PLC, Engine
Cooling Method: Water Cooling
Working Mode: Continuous/Adjustable
Laser Repetition Frequency: 10-100%
Laser Source: Ratcus IPG JPT
Output Cable Length: 10m
Operating Mode: Continuously
Laser Repetifrequency: 50-50,000Hz
Gross Power: ≤5000W
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1.Adhesive wrap to prevent scratches 2.Foam plate and block to prevent shake 3.Plastic film to keep the machine together 4.Non-fumigation plywood box
Supply Ability: 2000 Piece/Pieces per Year
Product Description
Handheld manual metal 2000W fiber laser welding machine laser continuous welder
Details show
Specifications
Parameter Table
Laser source
Raycus
Laser power options
1000W/1500W/2000W
Voltage
220V single phasr or 380V, depend on the laser power
Welding speed range
0-120mm/s
Fiber optics length
Standard 10m or 15m
Cooling style
Water cooling
Wave length
1080nm
Power stability
±1.5%
Laser repetition frequency
50-50,000Hz
Beam quality
m²≤1.3
Welding thickness range
0.5-3mm
Fiber core dia.
25um
Dimensions
1200mm*680mm*1000mm
Working mode
Continuously/Adjustable
Product advantages
1) the electro-optic conversion efficiency is high
2) anti-high-reaction ability
3) thin plate welding is efficient
4) thick plate deep melting without splash
5) the output fiber length can be customized
6) water cooling is more stable
7) maintenance-free operation
8) wide modulation frequency range

Application
- The welding machine can be used in a wide range of industries such as kitchens, household appliances, advertising, molds, stainless steel, doors and windows, handicrafts, household goods, furniture, auto parts, etc. It is also common in Firearms, Gift & Accessories, sheet metal, PCB, tools, advertisement, Medical, Packaging, Electronic, Semiconductor, etc.

- Handheld laser welder is a good substitution of the traditional electric welding, argon arc welding, and other processes.

- Portable design for lap welding, edge welding, angle welding, tailoring welding, fillet welding, etc.
Company profile
Our service
1) Guarantee for 2 years.
2) Maintenance free of charge for 1 year.
3) We will provide the consumable parts at an agency price.
4) 24 hours online service, freen technical support.
5) Machine has been adjusted before delivery, operation manual is included.
