Features

Specifications

Application: Laser Engraving

Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Engraving Area: 1300*900

Laser Type: CO2

Engraving Speed: 0-60000mm/min

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Condition: New

CNC Or Not: Yes

Cooling Mode: WATER COOLING

Laser Source Brand: RECI

Servo Motor Brand: Leadshine

Guiderail Brand: HIWIN

Weight (KG): 550 KG

Key Selling Points: Easy To Operate

Warranty: 3 Years

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Advertising Compa

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 3 Years

Core Components: Bearing, Gearbox

Laser Power: 60W/80W/100W/130W/150W

Control System: Ruida Control System

Operate Temperature: 5 -45 Temperature/ Humidity 10%-80%

Laser Wavelength: 1064nm

Working Voltage: AC110-220V 10%.50-60HZ

Working Table: Honeycomb

Locating Precision: 0.003mm

Optional Parts: Up-down Worktable

After-sales Service Provided: Field Installation, Commissioning And Training

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: United Kingdom, United States, Italy, France, Germany

Showroom Location: United Kingdom, United States, Italy, France, Germany

Marketing Type: Ordinary Product

Basic Infomation

Payment & Shipping Terms

Packaging Details: Plywood

Supply Ability: 50 Set/Sets per Month

Product Description

Feature Of Machine
1. Adopt DSP digital controlling technology,self-design laser power supply,incorporate designed frame and structure to guarantee stable work.
2.The newest software is matched to AutoCAD,coreIDRAW CAD and all other graphics processing softwares for outputing original graphics.
3.This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource.The LCD controlling panel brings friendly computer-human interface and easy operation.
4.It uses USB port data interface with large mass storage device to provide high working speed and efficiency.

Applicable Industries:

Co2 laser cutting engraving machine is applied in garment,leather,cloth toys,computer embroidery cutting ,mould ,crafts,bamboo and
wood,advertising and building decoration,packaging and printing,paper products,etc.

Application Material :
Acrylic,plastic,wood,plywood,MDF,rubber,leather,cloth,woollens,crystal,tile,glass,bamboo,etc.

Product Detail

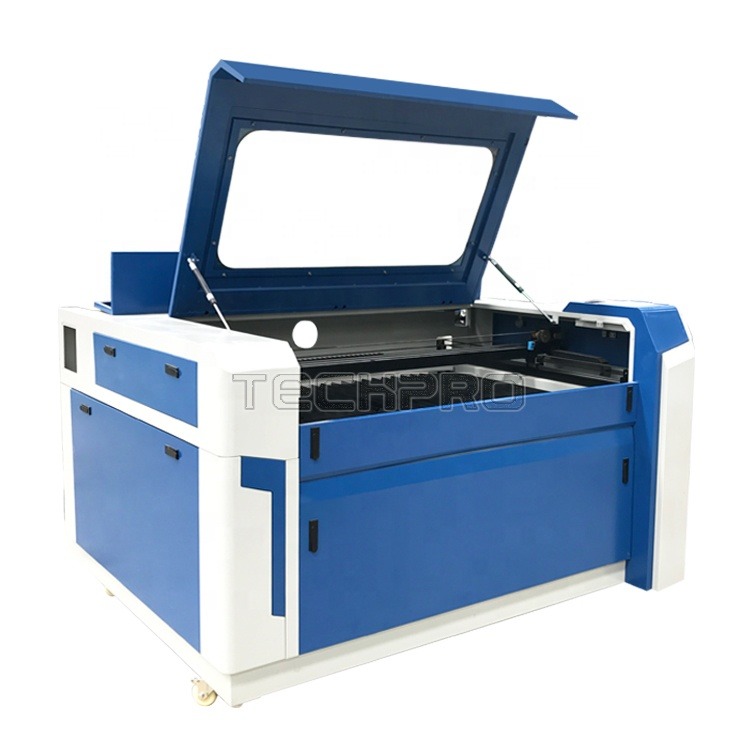

Model	Co2 Laser Cutting Engraving Machine TPJ1390
Working Area	1300mm*900mm
Working Table	Blade table
Working speed	1000mm/s
Laser Type	Sealed co2 laser tube
Laser Power	150W/180w/280w/300w
Positioning Accuracy	±0.003mm(with red dot)
Image Format Supported	BMP,PLT,DST,AI,DXF,etc
Cooling System	Constant temperature water cooling and protecting system
Power Supply	AC220±10%,50-60Hz
Working Temperature	0-45℃
Working Humidity	5%-95%

Packing&Shipping

Packaging detail:

1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film

for humidity.
3). Machine packing size:1950*1470*1320mm ,GW: 550kg

Shipping detail:

Shipped in 5-10 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
2) Some extra spare parts (Electrical components, limit switches etc)

After Service

1.) Warranty: One year on parts from date of shipping date, 3 years for free repair. Life-time technical support.
2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, laser application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.

Company Introduction

Jinan TechPro CNC Equipment Co., Ltd, Since 2007, it’s a high-tech enterprise producing CNC machine, focusing on the research and development and sales of industrial CNC products, Located in Jinan city (the hometown of CNC Machinery in China) , has been steadily developing more than 10 years.We enjoy the advantage of strong international competitiveness and is a reliable partner for your long-term cooperation !!!

FAQ

Q1. How can i get one best machine for my needs ?
You can tell us your working material (Sheet size and thickness ), Then we can provide our best solutions for you !
Q2. This model not suitable for me, do you have others available?
Yes, we have standard size 600*900mm/1300*900mm/1600*1000mm/1300*2500 etc , we also support custom made. and laser power from 60w
to 400w, can meet your different thickness cutting needs.
Q3. This is the first time I use this kind of machine, is it easy to operate?
There are English manual and Install video that show how to operate machine before delivery. If there is still have any question,please contact us by e-mai skype/ phone /trademanager online service at any time.
Q4. If machine have any problem after I receive it, how can I do ?
If machine have problems, we provide any parts for free during warranty period, if excess warranty , we will give you our cost price to you!
Q5. How to Payment ? and can close to order by Alibaba ?
Yes, Can payment by TT, Western Union ,Paypal (offline deal) , also can by Alibaba (preferred)
Q6. How long time can delivery and what packing size of this 1325 machine ?
Normally 6090 machine about 5-7 days/1390 about 7-9days/1325 about 15 days can delivery. machine packaged by plywood box
