Optical laser marking low price software ezcad for metal fiber laser marking machine 20w 30w 50w

1 Set
MOQ
$1,477.00(1 - 1 Sets) $1,422.00(2 - 5 Sets) $1,367.00(>=6 Sets)
Price
Optical laser marking low price software ezcad for metal fiber laser marking machine 20w 30w 50w
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking
Working Accuracy: 0.0012mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: EACAD
Laser Source Brand: RAYCUS/JPT
Control System Brand: EZCAD
Weight (KG): 30 KG
Key Selling Points: Competitive Price
Warranty: 2 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marking Area: 150mm*150mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Laser Source
Product Name: Portable Fiber Laser Marking Machine
Laser Source: IPG Raycus Max JPT
Laser Power: 20W /30w/ 50w(Optional)
Applicable Material: Metal Aluminum Stainless Steel
Keywords: Laser Markng Machine
Name: Laser Marking Mahchine
Laser Wavelength: 1064nm
Marking Speed: 0-7000mm/s
Working Area: 100x100/150x150/200x200(Optional)
Marking Depth: 0-1mm
Showroom Location: France, Brazil, Saudi Arabia
Marketing Type: Ordinary Product
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden pallet+ Wooden box packing
Product Description
Product Overview
Laser Type
Fiber Laser Marking Machine
Working area
110*110/150*150/200*200/300*300(mm)
Laser power
20W/30W/50W
Laser wavelength
1060nm
Application
metal and partial nonmetal
Repeated Precision
±0.003mm
Cooling Mode
Air Cooling
Supported graphic formats

AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
Controlling software

EZCAD
Warranty
2 year
Gross Weight
65kg
Optional parts
Rotary Device, Lift platform, other customized Automation
Beam quality
m²<1.5

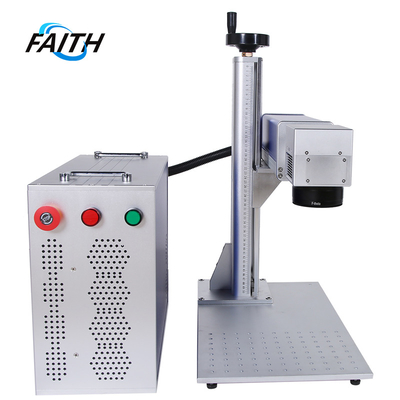

PL-150 fiber laser marking machine
Flexible Design, Convenient Marking
Marking process: through the evaporation of surface materials to expose the deep materials, or through the chemical and physical changes of surface materials caused by light energy to "carve" traces, or through the burning of some materials by light energy to show the required patterns, characters, etc. This machine can print numbers, Chinese characters, English letters, graphics support automatic coding, serial number, batch number, date bar code, QR code, automatic skip number, etc.
Marking Samples
Print multiple materials and support various data types
-Laser marking machine can carve all kinds of metal and some non-metal, metal alloy materials, plastic, rubber, leather and other materials
-Laser marking machine can meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
-Engraving pattern, text, QR code, serial number, counter, date, shift, variable, etc

Our advantages.

1.Multilingual support ：Any language installed in a printable operating system
2.Contact less printing： No mechanical stress on the surface of the object
3.Permanent identification：If it is not deliberately damaged, the content of the mark will never disappear
4.Adjustable printing parameters：Laser power and marking frequency can be adjusted at any time
5.No consumables required：The laser marking machine only consumes electric energy, not any other consumables
6.Easy to maintain：The field mirror only needs to be properly dustproof at ordinary times without special maintenance
Certificates

About ShenYang Faith technology Co., Ltd.

Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production,sales and service. It specializes in providing laser marking machine technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
Shipment and Payment
faith Technology Co., Ltd. Fatih Laser Technology Co., Ltd. has a history of 11 years and has its own patented technology and factory.
Package and Shipment
FAQ
Q1: What can laser marking machine carve? A1:It can carve all kinds of metal and some non-metal, metal alloy materials, plastic, rubber, leather and other materials Q2: How should I get more videos or details of laser marking machine if I need them? A2: You can get more information from our .customer service. Q3:What if I have a technical problem of laser marking machine ？ A3:24 hours online after-sales, /no matter you seek help at any place, any time, we can respond quickly Q4:Can it meet the needs of assembly line？ Q4:Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc Q5:What are the types of lettering and patterns？ A5:Engraving pattern, text, datmatrix QR code, serial number, counter, date, shift, variable, etc
