Home /Products/Fiber Optic Laser Engraver/Laser Marking Easy And Simple To Handle Separate Fiber Laser Marking Laser Machine Marking Machine Laser

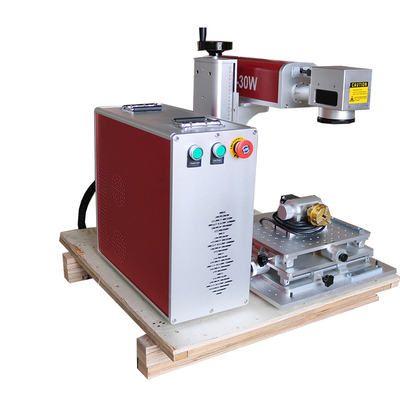

Laser Marking Easy And Simple To Handle Separate Fiber Laser Marking Laser Machine Marking Machine Laser

1.0 Sets
MOQ
Laser Marking Easy And Simple To Handle Separate Fiber Laser Marking Laser Machine Marking Machine Laser
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking, Laser Marking
Working Accuracy: 0.01mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type: Fiber Laser, Fiber Laser
Condition: New, New
CNC Or Not: Yes
Cooling Mode: Air Cooling, Air Cooling
Laser Source Brand: RAYCUS
Control System Brand: M2/RUIDA
Weight (KG): 45 KG
Key Selling Points: High Productivity, Easy To Operate
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works , Advertising Company, Other
Marking Area: 500mm*500mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Other
Product Name: 20w Laser Marking Machine
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Showroom Location: None
Marketing Type: New Product 2021
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 2000 Piece/Pieces per Month
Product Description
Product Name
Split marking machine
Laser Type
Fiber
Warranty
1 Year
Condition
New
colour
Blue and white
texture
iron
power
10w/20w/30w/50w
Application
Laser Marking
control panel
M2/RUIDA
Working Accuracy
0.01mm
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
CNC or Not
Yes
Cooling Mode
Air Cooling
Control Software
JCZ
Place of Origin
Shandong, China
Brand Name
YZJGDKJ
Certification
ce, ISO
Laser Source Brand
RAYCUS
Control System Brand
JCZ
Marking Head Brand
SG
Weight (KG)
45 KG
Key Selling Points
High-accuracy
Warranty
2 years
After-sales Service Provided
Online support, Free spare parts
After Warranty Service
Online support
Local Service Location
None
Showroom Location
None
Marking Area
175mm*175mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2020
Warranty of core components
2 years
Core Components
Laser
Model
WR-20D/30D
Laser Power
20W /30w/ 50w(Optional)
Working area
110*110 /150*150/175*175/ 200*200/300*300mm
Laser source
Raycus/Max/JPT
Marking Speed
0~7000mm/s
Marking Depth
0.01-1mm
Marking material
Metal Non-metal
Support format
DXF PLT JPG BMP
Minimum Line Width
0.01 Mm-0.1mm
Supply Ability
300 Set/Sets per Month
Packaging Details
PLYWOOD PACKING
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising
Company

laser source Laser source we use rex famous brand laser source, high stability, long life, no consumables.This is the key part of fiber lasermarking machine.

Ftheta lens Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm) The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.

EZCAD control card Famous brand directional EZCAD control system, easy to operate.

Galvo head Sino- galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.

Lifting handle To remove wheel to get the streng point to get focus. Laser focus distance can be adjusted easily

Power supply Power supply for galvo head and control card
Laser power
10W (20w,30w,50w optional)
Laser wavelength
1064nm
Laser type
Fiber laser
Laser beam quality
m2<1.5
Repeat Frequency
20KHZ-80KHZ
Min linear width
0.01mm
Repeat Positioning Accuracy
0.005mm
Making Depth
0.01-0.5mm
Standard Making Area
110*110mm (70*70mm/175*175mm optional)
Rated Power Consumption
Less 500w
Optional Voltage
220V/50HZ/15A
Graphic Formates Supported
PLT BMP JPG PNG PCX TGA DXF etc
Working temperature
5~35℃
Cooling
Air cooling
Engrave sample
