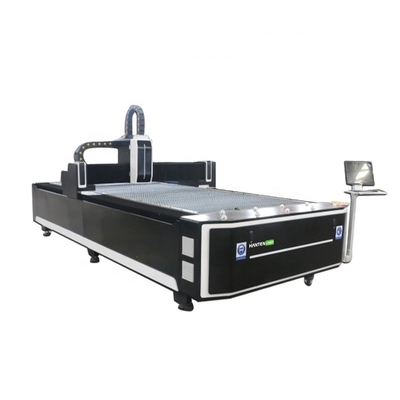

Hot Selling Fast Speed ​​1530 Best Quality 2000W Raycus Laser Source Laser Cutter Cutting Machine

1 Set
MOQ
$34,999.00(>=1 Sets)
Price
Hot Selling Fast Speed ​​1530 Best Quality 2000W Raycus Laser Source Laser Cutter Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: LASER CUTTING
Applicable Material: Metal, Crystal
Condition: New
Laser Type: Fiber Laser
Cutting Area: 1500*3000mm
Cutting Speed: 0-30m/min
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 1-15mm
CNC Or Not: Yes
Cooling Mode: WATER COOLING
Control Software: CYPCUT
Laser Source Brand: RAYCUS
Laser Head Brand: Raytools Autofocus
Servo Motor Brand: Yaskawa
Guiderail Brand: HIWIN
Control System Brand: Cypcut
Weight (KG): 2400 KG
Key Selling Points: High-accuracy
Optical Lens Brand: Wavelength
Warranty: 3 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Motor, Bearing, Laser Source, Laser Cutting Head
Mode Of Operation: Continuous Wave
Configuration: Gantry Type
Products Handled: Sheet Metal
Feature: Fast Speed
Product Name: Laser Cutter Cutting Machine
Laser Source: MAX IPG RAYCUS
Laser Power: 1000W / 2000W / 3000W
Control System: Cypcut Control System
Application Meterial: Metal
Cooling System: Water Cooling System
Working Area: 1500*3000mm
Working Table: Heavy Duty Steel Tube Welded Machine Frame
Dimension (L*W*H)mm: 2280*4850*2300mm
G.W(kg): 3200KG
Basic Infomation
Payment & Shipping Terms
Packaging Details: Plywood case.We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description
Main Features of Machine: (1) High precision, fast speed, narrow cutting seam, minimum heat-affected zone, smooth cutting surface without burrs. (2) The laser cutting head will not touch the surface of the material and will not scratch the workpiece. (3) The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is minimal, and there is no mechanical deformation. (4) The processing flexibility is good, it can process any graphics, and it can also cut pipes and other profiles. (5) It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy plate, cemented carbide, etc. without deformation.
Machine Details:

Laser Head

1. Optimized design structure: modularization, easy maintenance, and reduced downtime.
2. Multiple protective lenses: 3 protective lenses, efficient protection of collimating focusing lenses.
3. Durable and durable: 2-way optical water cooling, effectively extending continuous working time.
4. Closed-loop step-by-step automatic focusing: A closed-loop stepper motor is used to effectively avoid losing steps. The
focusing speed is 100mm/s, and the repeatability is 1μm.

High precision machine bed

1. Fiber laser cutting machine lathe bed part completely independent research and development, by the party welding lathe bed
base, through the large gantry milling machine.
2. For large machine bed we have many years of experience in processing, each
machine bed will be placed 30 to 45 days after rough machining natural failure, the internal stress release completely again after
finishing, ensure the machining accuracy. High strength, stability, ensuring 20 years of use without distortion.

Rack

The helical rack and pinion have better meshing degree, stable transmission and low noise; large coincidence degree reduces the
load of each pair of gears and improves the load-carrying capacity of the gears

Scroll Wheel

The roller can make the loading more labor-saving and time-saving, and the workpiece can be on the work surface with a light push. The scroll wheel of Hanteng Laser is very smooth and will not get stuck
Specification
Description
Parameter
MACHINE MODEL
HTC1530

Machine frame
#New design of our company
#Heavy duty Steel tube welded machine frame
#Cast Aluminum gantry
Controller
#Bochu controller
#Cypnest software
#Industral CPU + cantilever
#independent controller box
#DSP
Laser system
#Fiber Chinese best brand MAX laser generator
#Raytools autofocus laser cutting head
Transmission system

#Taiwan Hiwin rails
#Apex/YYC gear transmission
#Z axis TBI ball screw transmission
Driver system
#Japan Yaskawa servo motor and driver X:850W Y:850W Z: 450W
#Original Japan SHIMPO Reducer
Auxiliary equipment
# Water chiller
#Automatic lubrication system
Other important parts
#Proportional valve to control gas pressure
#Solenoid valve, control gas switch
#France Schneider Electric Device
#Software Limited switch +Hard Limited switch
#Other tools
Service
#Teaching Video
#Three-year warranty
#24 hours online service
Dimension (L*W*H)mm
2280*4850*2300mm
CBM(m3)/set
23CBM
N.W/Kg
G.W(kg)
3000KG
3200KG
Packing one
20GP container
Delivery time
15-25 days
Sample&Application
1.Metal Fiber laser cutting machine Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,
Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2.Metal Fiber laser cutting machine Application Industries:
Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,
Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets
Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,
Nameplates, etc.
More Choose
Packing & Delivery
Plywood case.We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Company Profile
Jinan Hanteng Laser Technology Co.,ltd is a professional automatic laser marking engraving and cutting machine manufacturer in China. Our products include the fiber laser marking machine, laser marking machine, laser welding machine, laser engraving and cutting machine and so on, which have passed CE certification. Our machines are widely used for the arts and crafts, the machine parts, hardware tools, advertising sign, shipbuilding industry, auto parts, rubber molds, high-end machine tool, tire mold, Environmental protection industry and so on. We have many customers from different countries around the world. --16 years of experience in the production and development of cnc laser coding equipment: --Directly sales from factory to buyer; --24 hours online after-sales.
Customer Visit Many our customers visit our factory,to learn how to use the machine.Our after-sales service manager went to the customer's country to help debug the machine.Our machines are exported to Europe, America and many other countries,such as,United Kingdom Canada Brazil Mexico United States Netherlands and so on.
Certificates The certificates accumulated by Hanteng Laser in more than ten years, which have witnessed the development history of Hanteng Laser, Quality comes from professionalism and integrity comes from service
FAQ
1. How can I get the best machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model by our accumulated experiences.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Laser Marking Machine / Laser Cutting Machine / Laser Welding Machine / Laser Cleaning Machine / CO2 Engraving Machine / CNC Router / UV Printer

4. why should you buy from us not from other suppliers?
Hanser Laser is a branch company with engineers and research and development for 15 years. It is a professional manufacturer engaged in the research, development, production and service of cnc router & laser machine .

5. How do you ensure that it's the right machine I need? You can send your materials to us by courier, we will mark you for free, and send you pictures and videos.
