Home /Products/Metal Laser Cutting Machine/Ball screw popular product among advertise combined fiber and CO2 machine for cutting metal and non metal

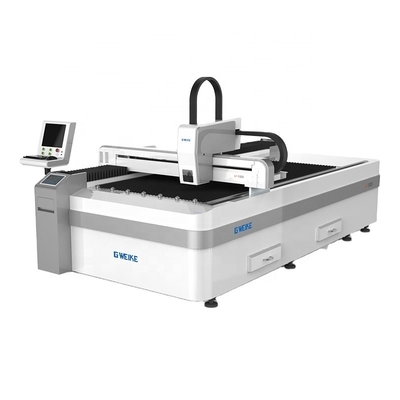

Ball screw popular product among advertise combined fiber and CO2 machine for cutting metal and non metal

1 set
MOQ
$23,400.00(>=1 sets)
Price
Ball screw popular product among advertise combined fiber and CO2 machine for cutting metal and non metal
Features Gallery Product Description Request A Quote
Features
Specifications
Application: LASER CUTTING
Applicable Material: Acrylic, Leather, MDF, Metal, Paper, Plastic, Plywood, Wood
Condition: New
Laser Type: Fiber Laser
Cutting Area: 1300*2500mm
Cutting Speed: 30m/min
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 0-16mm Carbon Steel
CNC Or Not: Yes
Cooling Mode: WATER COOLING
Control Software: Au3tech
Laser Source Brand: IPG/Raycus
Laser Head Brand: Au3tech
Servo Motor Brand: DELTA
Guiderail Brand: HIWIN
Control System Brand: Au3tech
Weight (KG): 1650 KG
Key Selling Points: Automatic
Optical Lens Brand: Wavelength
Warranty: 2 Years
Applicable Industries: Building Material Shops, Printing Shops, Advertising Company, Other
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Laser Source, Laser Head
Mode Of Operation: Continuous Wave
Configuration: Gantry Type
Products Handled: Sheet Metal
Feature: Ball Screw
Product Name: Gweike LF1325LC
Laser Head: Au3tech
Fiber Laser Power: 1000w/1500w/2000w
CO2 Laser Power: 80w/100w/130w/150w
Color: White And Black
CO2 Laser Tube Type: Reci
Key Words: Metal And Non-metal Head
Packing Size: 4200*2700*1850
Aviation Aluminum Beam: Gwike Made By Ourself
Power Supply: 380V/50Hz 220v/60HZ
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wood packaging
Supply Ability: 200 Set/Sets per Month
Product Description
Product Description
Specification
item
value
Application
LASER CUTTING
Applicable Material
Acrylic, Leather, MDF, Metal, Paper, Plastic, Plywood, Wood
Condition
New
Laser Type
Fiber Laser
Cutting Area
1300*2500mm
Cutting Speed
30m/min
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness
0-16mm carbon steel
CNC or Not
Yes
Cooling Mode
WATER COOLING
Control Software
Au3tech
Place of Origin
China
Dual laser head
can cut metal and non-metal,max.fiber laser source is 2000W,CO2 laser source is 150w.very popular among the Advertisers
Ball screw
Single screw drive，cutting with
High perameter
Product Paramenters
Sample Display
Company Profile
Gweike laser has a technical and after-sales team of more than 100 people who are online 24 hours a day to provide quick feedback on the problems you encounter. Gweike Laser's factory has over 42,000 square meters of floor space and a showroom inside to provide cutting demonstrations. The production floor area is large and the delivery time is fast. Gweike is able to meet the various safety standards required by various countries. We focus on quality and have many big agents in Europe and America who have been working with us for many years, such as CHITECH Fast production and quick delivery, we have many cooperative forwarders for many years, even in the current situation of complicated shipping situation can still ensure stable booking and delivery.
Exhibition & Certifications
FAQ
1.What are the characteristics of this machine?
LF1325LC is with two laser head,one is for cutting non-metal( paper,MDF,wood,leather) and the other is cutting metal(stainless steel,Alu.and carbon steel).This type of machine is very popular among the advertisers.

2. What is the optional power of the machine?
LF1325LC,two laser head has two laser source,one is the CO2 laser tube and the other is fiber laser source,Co2 laser tube max.is 150w and max.fiber laser is 2000w,customers can choose which power you'd like.

3. What is the difference between two laser source IPG and Raycus?
IIPG is the most famous laser source brand, except mild steel, stainless steel, galvanized sheet etc, it can also cut high
refelective metal such as aluminum, brass etc.
Raycus laser source is from China,it is cheaper,while can not cut high reflective metal for a long time.

4.what is assited gas?how can I use it?
Standard assisted gas is N2 for cutting stainless Steel,O2 for cutting carbon steel,and there is also optional,air compressor,you can also use the air to cut metal,it can only replace the N2 and O2,but not all material you can use air,when you not comfirm,please check with us.

5. Dose the machine can raster and vector engreve?
No,it can't.Mechanical equipment is not suitable for engraving.

6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
