Introduction:
Laser cleaning machine is a new generation of surface cleaning and high-tech products. It has the functions of easy installation, manipulation and automation. When connecting the power and opening the equipment, cleaning function can be carried out without chemical reagent, medium, dust, water. Handheld laser rust remover also can automatic focusing and surface cleaning. Not only that, handheld laser cleaner can clear surface resin, grease, dirt, stains, objects burning, coating, embroidered paint.
Performance:
Non-contact cleaning without damage to parts matrix
Handheld laser cleaner can remove rust without any chemical cleaning fluid
Pre-coating surface preparation / contaminant removal
Stable laser source, no maintenance
No consumables, environmental friendly
Hand-held type, automation and easy for operation
Parameter:
|
Model No. |
CY-MF100 |
|
Laser Power |
100W |
|
Laser Source |
Orion MOPA |
|
Laser Wavelength |
1055~1070 nm |
|
Line Width |
≤15nm |
|
Cleaning Ability |
1.8m²/hour |
|
Cleaning Speed |
1~1000mm/s |
|
Beam Quality |
<1.6m² |
|
Weight of Head |
2.5Kg |
|
Control Panel |
LED touch screen |
|
Language Option |
English/Chinese |
|
Power Supply |
220V/50Hz (60Hz optional) |
|
Cooling System |
Air Cooling |
|
Machine Dimensions (L*W*H) |
Host Machine: 650*500*60mm Cleaning Head: 390mm |
|
Applicable Materials |
Stainless steel, Iron, Galvanized sheet, carbon steel, Aluminium etc. |
|
Working Temperature |
5~40° |

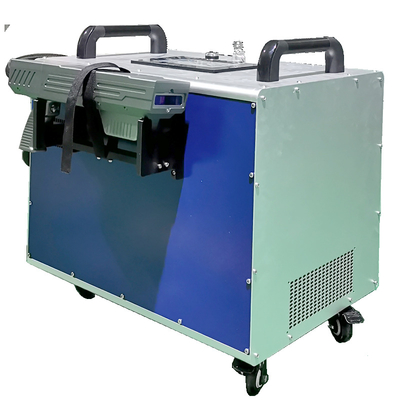

Picture:
Despatch port: Shanghai/Guangzhou
Shipping method: Seaway shipping is recommended
Packing: Standard export plywood cases
Payment: T/T 30% in advance and 70% before delivery
Warranty:1 year overall warranty (Fault diagnosis and parts exchange for free)
About us:
Wuhan Chuyu Optoelectronic Technology Co.,Ltd (known as CY OPTO) manufactures laser equipments based upon a number of key enabling industries: Consumer Electronics, Packaging Industry, Auto Parts, Jewelries, Textile & Leather,Electronic Components,Glass and Optical Units,Medical Devices,House Furnishings and Hardware Formed from leading established companies in these complementary industries.
Honor:
Exhibition:
Q: What's your warranty policy?
A: We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q: Is this machine stable to use and is it complicated to maintain?
A: YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q: How can I do if the machine goes wrong?
A: If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
