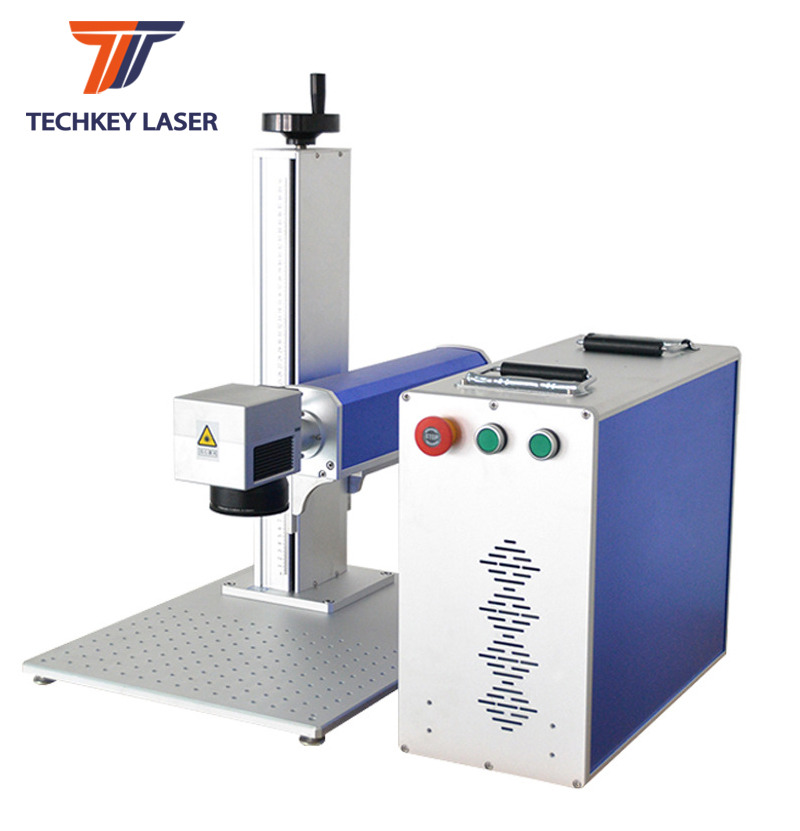

30 watts laser marking
Fiber laser marking machine advantages:
1. Portable: Integration design causes small volume. It can be easily installed with air cooling.
2. Environmental friendly: No poison and no consumables.
3. The portable Laser marking machine can mark all the graphics created by computer.
4. Permanent marks and strong anti-fake function.
5. Fast marking speed and high efficiency of process.
6. Software operation is easy to learn.
Fiber laser marking machine features:
1. High stabilization: The portabel fiber Laser marking machine is equipped with fiber laser system. Can work in the bad environment.
2. High speed: Powerful functions of the software is compatible with the imported scanning system, the limit of the marking speed can reach 10000mm/s which is the 2-3 times fast than the traditional Laser marker normally.
3. Convenience: The portable laser marking machine is adopts integrated and portable designed structure, easy to carry, small size and maintenance-free.
4. Power saving:The power consumption of the whole machine is the 1/10 of the light pump laser marking machine, largely save the process cost.
5. Long lifetime: The protable laser marking machine has no consumption, and the lifetime of the imported fiber laser can reach 100000 hours. The lifetime can reach 12 years in the condition of 24 hours work everyday.
6. Perfect light beam: The focusing light beam of the portable fiber laser marking machine is less than 20um, especially apply to subtle and precise marking.
7. Powerful function:Compatible with the files from CorelDraw, AutoCAD, Photoshop, etc.
8. Supporting the file format of PLT, PCX, DXF, BMP etc. Supporting auto-coding, serial No., batch No., barcode, 2-D code and so on.
Applications of Laser marking Machine with Fiber laser source:
1. Applicable materials: Any metal materials (including precious metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramics, and other materials.
2. Applicable industries: Jewelry, watches, phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, auto parts, luggage buckles, cookware , stainless steel products and other industries.
| √ Various Metal material such as stainless steel ,titanium,brass etc. |
| √ Plastic materials such as PP,PE,PVC,ABS etc. |
| √ Rubber |
| √ Coating metal |
| √ Epoxy resin |
| √ Electroplating materials |
|
Materials |
Mark |
Materials |
Mark |
|
alloy |
√ |
hardware |
√ |
|
copper |
√ |
mobile phones |
√ |
|
aluminium |
√ |
eye glass frames |
√ |
|
zinc |
√ |
clocks and watches |
√ |
|
rare metals |
√ |
plastic buttons |
√ |
|
electronic components |
√ |
building material |
√ |
|
integrated circuits |
√ |
chemical and food packaging |
√ |
|
electrical applicances |
√ |
medical instruments |
√ |
|
pvc pipe |
√ |
metallic oxide |
√ |
|
plate surface |
√ |
alarm |
√ |
|
commodity |
√ |
printed material |
√ |
|
brass |
√ |
auto spare parts |
√ |
|
precision equipment |
√ |
ABS |
√ |
|
tool accessories |
√ |
motor accessories |
√ |
Fiber Laser Marking Machine-Technical Parameters:
| Production | Fiber Laser Marking Machine | Cooling Mode | Air Cooling |
| Modle No.: | TKFM-20 | Max.Marking SPeed | 7000mm/s |
| Laser Source | Max. or Raycus as you want | Min. Line Width |
0.015mm |
| Power | 20w | Min. Character | 0.2mm |
| Laser Wavelength | 1064nm | Pulse Frequence | 0.2mm |
| Marking Area | 110*110mm | Pulse Frequence | 30KHZ-60KHZ |
| Control Card | JCZ Brand EZCAD | Certificates | |
| Repeat Precision | +/-0.001mm | Operation System | Win xp/7/8/10(32bit,64bit) |
| Graphic Format Supported | PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc | Poswer Supply | 110V-220V, or according to your request |
Application and Samples
Fumigation-free professional export wooden box
Plastic film wrapped around moisture
Foam protection against collision
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
