Features

Specifications

Application: Laser Marking

Working Accuracy: 0.01mm

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, LAS, DXP

Laser Type: Fiber Laser

Condition: New

CNC Or Not: Yes

Cooling Mode: Air Cooling

Control Software: EZCAD

Laser Source Brand: Raycus, IPG, JPT, MAX

Control System Brand: JCZ

Weight (KG): 66 KG

Key Selling Points: Multifunctional

Warranty: 2 Years

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Marking Area: 110mm*110mm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 2 Years

Core Components: Laser Source

Mode Of Operation: Continuous Wave

Configuration: Stand-alone

Feature: Air-cooled

Product Name: Fiber Laser Marking Machine

Laser Power: 20W, 30W, 50W

Cooling System: Water Cooling / Air Cooling

Laser Type: Fiber Laser

Laser Wavelength: 1064nm

Function: Metal And Plastic Marking, Engraving, Deep Engraving

Laser Power Supply: AC220VÂ±10% 50HZ/60HZ

Repositioning Accuracy: 0.003mm

Marking Area: 110mm*110mm

Marking Speed: 0-7000mm/s

Basic Infomation

Payment & Shipping Terms

Packaging Details: Packing with plywood box 1. machine cleaning 2. protective film wrapping 3. wooden box sealing 4. box nailing 5. metal strap fastening

Supply Ability: 200 Set/Sets per Month

Product Description

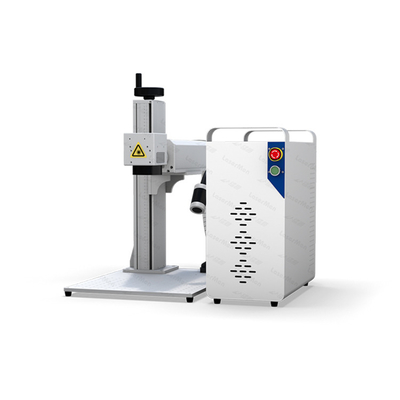

70% off 20W 30w 50w 60W M7 JPT Split Fiber Laser Marking Machine Laser Marker

Fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world. It is designed with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products, jewelry, images marking etc.

Machine features

1. Excellent beam quality: This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um, divergence angle is 1/4 of the semiconductor pumping source laser, used in accurate marking

2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser

3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens

4. Fast marking speed, 2-3 times faster than the traditional marking machine

5. Long working life: using fiber laser as pumping source, the working hours can reach as long as 100,000 hours

6. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

7. Air-cooling, no water chiller like YAG laser marker, easy transportation, also have the portable type.

8. This machine cannot be affected by bad environment and the temperature change.

9. Small size and light weight.

Output Power:	20w / 30w / 50w
Wavelength	1064nm
Beam quality	M2 < 2
Cooling system	Air cooling
Marking scope	110mm×110mm
Repeat accuracy	±0.002mm
Marking Depth	Max. 1mm ( Depending on materials)
Linear speed	≤7000mm/s
Min. line width	0.01mm
Min. character size	0.2mm
Input power:	<1.2 KW
Electrical source:	220V/50Hz/5A
Dimensions :(LWH)	610x810x1320mm
Packages	Seaworthy plywood case

SAMPLE

Machine details

Galvo scanner

X-axis and y-axis are formed by utilization of optical principles, this part deciding the fast marking speed and the high-quality marking effects.

Pillar

lifting pillar, standard is 50cm

Machine switch

with friendly operation

Lamp

you could use it when it is dark light

Rotary

you could use it to process cylindrical objects

2D worktable

It can move left, right, back and forth

Laser source

Name: fiber laser source
Brand: Raycus
Original: China

Lens

Name: F-theta lens
Brand: Wavelength
Original: China
it decides the marking area

Packing and shipping

Company Profile

Our Service

2-YEAR WARRANTY, LIFETIME MAINTENANCE
1.Two-year warranty for the machine.
2.Two-year warranty for the laser source.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 24/7 on-line receiving your question or requesting.

* Providing solution within 12 hours.
