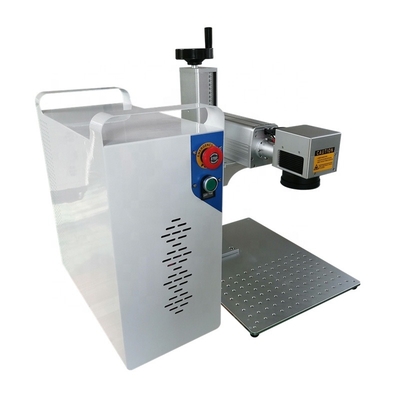

Working Portable 20w Fiber Laser Marking 200*200mm Size Marking / Mini Fiber Laser Marking Machine

1 Set
MOQ
Working Portable 20w Fiber Laser Marking 200*200mm Size Marking / Mini Fiber Laser Marking Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking
Working Accuracy: 0.02mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Laser Source Brand: RAYCUS
Marking Head Brand: Scanleb
Key Selling Points: High Productivity
Warranty: 1 Year For Machine, 3 Years For Laser Source
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Certification: Ce
After-sales Service Provided: Online Support, Video Technical Support
Use For: Marking On All Kinds Of Metal And Some Non-metal
Laser Power: 30W Raycus
Control System: EZCAD (Original Version)
Working Area: 150*150mm
Filed Lens: Laserhous
Cooling: Air Cooling
Laser Source: Raycus
Galvanometer: Scanleb
Optional: Rotary Axis
Voltage: 110V/220V
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: STRONG PLYWOOD PACKAGE
Product Description

Fiber Laser Marking Machine 30W Raycus ,working size 150*150mm (other working size aviable)

Laser form
ModelFiber Laser Marker
Laser Power20W 30W 50W Raycus
Supports Graphical FormatPLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
Beam QualityM2<2
Power Stability(8h)<±1%rms
Pulse Repetition Frequency20KHZ----100KHZ
Power Consumed<800W
Minimum Line Width50μm
Minimum Character0.3mm
Laser Wavelength1064nm
Working Size110*110mm 150*150mm 200*200mm 300*300mm
Whole Machine Power500W
Cooling WayAir Cooling
Operating Voltage110/220V ±10%, 50/60Hz
Ambient Operating Temperature15℃-35℃
Packing Plywood Wooden Packaging
Red PointerDouble Red Pointer
GalvanometerScanleb
Filed LensLaserhous
Laser SourceRaycus
OptionalRotary axis
Control systemJCZ (EZcad)
