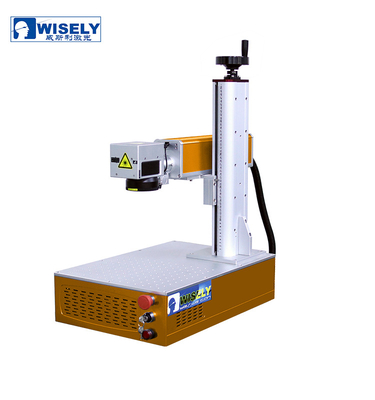

Fiber Laser Marking Machine laser marking Steel / Plastic / Gold / Sliver
(1) The machine adopts world top brand from Germany IPG laser source, with excellent performance, high-quality laser beam, stable laser output and longer lifeaspan;
(2) Portable style, Integration, easy to transportation, can work with customized automatic matching system;
(3) This machine works with all metallic materials and some non-metallic materials, gold, silver, coppper, stainless steel, aluminum, ect.
| Parameter | |
| Model | MY-M20F-III |
| Power | 30W / 50W |
| Laser Wavelength | 1064nm |
| Standard Marking Area | 150mm*150mm |
| Optional Marking Area | 70*70mm / 100*100mm / 200*200mm / 300*300mm / 400*400mm |
| Marking Depth | ≤1mm |
| Marking Speed | 800 standard characters / second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Fiber Laser Source | Imported with original packaging--IPG in Germany |
| Scan Head | Imported with original packaging--SCANLAB in Germany |
| Controller (software) | Imported with original packaging--Scaps in Germany |
| Lifespan of Fiber Laser Module | 100 000-200 000 hours |
| Beam Quality | M2 <1.3 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| Output Frequency of Laser | 20KHz~80KHz continuously to be adjusted |
| Power Stability (8h) | <± 1% rms |
| System Operation Environment | Windows XP / 7 / 8 / 10 -32/64bits |
| Cooling Mode | Air cooling--Built-in |
| Temperature of Operation | 0℃~40℃ |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement | <400W |
| Dimension (L*W*H) | 450*750*720mm |
| Package Size | 550*850*870mm |
| Net Weight | 55KG |
| Gross Weight | 75KG |
| Optional (Not free of charge) | Rotary Device, Moving Table, Lens, Fume Purifier, other customized Automatic Matching System |
Feature
1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
5) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.
6) Low consumption: <400W, more economized and environmental.
7) Original Scaps controller, High stability, USB interface, swift and stable transmission, route optimization, intelligent calculation, easy operation.
8) Original ScanLAB scan head, high speed and precision, with good seal, capable to prevent dust and water, small volume and compact.
9) Long lifespan of IPG laser module: 100 000 - 200 000 hours
10) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, Solidworks, etc..
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
Application
WISELY IPG Integrated Fiber Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many nonmetallic materials, such as ABS, Nylon, PES, PVC, Makrolon, etc.
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
With established in 2010, has been engaged in research and manufacturing of lasers in the fields of advertising, light processing and other fields. The company integrates research and development, production, sales and maintenance services, and specializes in manufacturing a full range of:
1. Laser Marking Machine.
2. 3D Laser Engraving Machine.
3. Laser Cutting Machine.
4. Laser Welding Machine.
5. Automatic Laser Systems.
(With world-leading laser brands such as IPG, SPI, Synrad, Coherent, GSI and RECI, JPT, Raycus.)
Q1. About the quality?
With latest laser source lifespan over 100 000 hours.
Many customers said they are happy with our laser machines when we do client review after 1~2 years.
As the vendor of SIEMENS, DOOSAN, SGD Pharma, we are keeping superior quality with reliable after service all the time.
Q2. What is a fiber laser marking machine for?
Fiber laser marking machine is mainly used for marking and engraving metal materials, such as stainless steel, aluminum, brass, copper, titanium etc. Of course, it can also mark some plastics.
Q3. About consumables and operation cost?
Our fiber laser machines have no consumables and operation cost. You can use it for years without maintenance.
Before send the machine to you, we will test it well. Marking software come with the CD, 2 boxes testing cards for free.
Q4. What watts of fiber laser should I choose?
It depends on if you do depth engraving. If your main works do not need depth or just need a little depth, such as 0.01-0.1mm, then 20w is good enough, quick and easy. If you do depth engraving a lot or you will do the depth engraving a lot in future, then you can consider 30w, for same depth engraving, of course 30w will be quicker than 20w. There are also 50w, 70w etc. For most customers, 20w and 30w are good enough.
Q5. About training and service?
Most new users can learn to operate the machine about 30 minutes with the user manual and operation video.
We also provide online training via TeamViewer, Skype, WhatsApp etc. If you need, I'll teach you operate it step by step online.
Q6. About payment and the shipping?
Shipment: Standard Machine leadtime 3~5 working days after received payment.
Payment: 100% to be prepaid before production.
Or 30% to be prepaid before production, 70% before shipment.
